How Does an Ice Maker Work

The operation of an ice - making machine commences with the water intake stage. It is equipped with an automatic water - inlet valve that plays a crucial role in this process. This valve is designed to detect the water level in the machine's water storage tank. When the water level drops below a certain preset value, the water - inlet valve automatically opens, allowing water from an external source, such as a water supply pipe or a water tank, to flow into the machine. This water then enters the water storage tank, ensuring a stable and continuous supply of water for the subsequent ice - making process. The water - inlet valve is precisely calibrated to control the flow rate of water, preventing over - filling or under - filling of the water storage tank. For example, in a commercial ice - making machine used in a large - scale restaurant, the water - inlet valve can quickly replenish the water storage tank to meet the high - demand ice - making needs during peak business hours.

Once the water is in the storage tank, it is time for the cooling process. A water pump comes into action, drawing water from the storage tank and pumping it to the evaporator. The evaporator is a key component in the ice - making process, and it is part of the refrigeration system. The refrigeration system consists of a compressor, a condenser, an expansion valve, and the evaporator. The compressor compresses the refrigerant gas, increasing its pressure and temperature. This high - pressure, high - temperature gas then flows into the condenser, where it releases heat to the surrounding environment and condenses into a liquid. The expansion valve reduces the pressure of the liquid refrigerant, causing it to expand and cool down significantly. The cold refrigerant then enters the evaporator. When the water from the storage tank flows over the cold surface of the evaporator, heat is transferred from the water to the refrigerant. As a result, the water temperature drops gradually. If the water temperature reaches the freezing point (0°C or 32°F under standard atmospheric pressure), the water starts to freeze. However, not all the water freezes immediately. The un - frozen water, which is still at a relatively higher temperature, drains back into the water storage tank through a drainage system. This water will be recirculated back to the evaporator in the next cycle, ensuring efficient use of water resources.

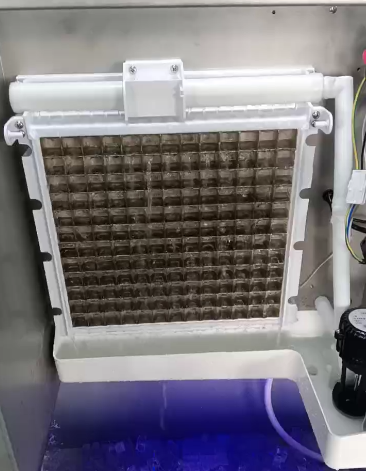

As the water in the evaporator continues to lose heat to the cold refrigerant, ice begins to form. The water that comes into contact with the extremely cold surface of the evaporator starts to freeze and adhere to the surface. This process is similar to how frost forms on a cold window on a winter day. The ice gradually builds up layer by layer on the evaporator surface. The rate of ice formation depends on several factors, such as the temperature of the refrigerant, the flow rate of the water over the evaporator, and the thermal conductivity of the evaporator material. Modern ice - making machines are equipped with sensors and control systems to monitor and control the ice - formation process. For example, a sensor can detect the thickness of the ice layer on the evaporator. When the ice thickness reaches a pre - set value, which is usually determined based on the desired size and shape of the ice cubes, the machine will take the next step in the ice - making process. Additionally, some ice - making machines can adjust the freezing rate to produce ice with different textures. For instance, a slower freezing rate can result in clearer and more transparent ice cubes, which are highly desirable in high - end bars for serving premium drinks.

When the ice has reached the required thickness, the ice - harvesting stage begins. One common method for ice harvesting is through a process called thermal defrosting. In this method, the flow of the cold refrigerant in the evaporator is interrupted. Instead, a small amount of warm refrigerant or hot gas, which is usually diverted from the compressor's discharge line, is introduced into the evaporator. This sudden increase in temperature causes the ice that has adhered to the evaporator surface to melt slightly at the interface between the ice and the evaporator. A thin layer of water is formed between the ice and the evaporator, reducing the adhesion force. As a result, the ice cubes, now separated from the evaporator by this thin water layer, can easily slide off the evaporator surface due to gravity. They then fall into the ice storage bin located below the evaporator. Some ice - making machines also use mechanical methods to assist in ice harvesting. For example, a rotating auger or a set of small blades may be used to gently scrape the ice off the evaporator surface. This mechanical approach is especially useful for ice - making machines that produce large - scale ice blocks or ice sheets.
